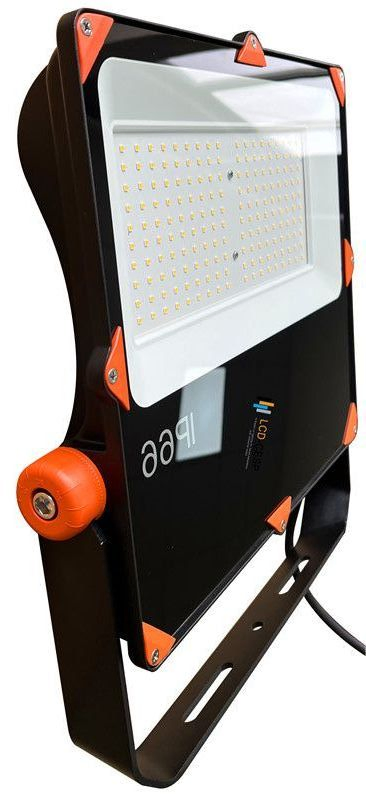

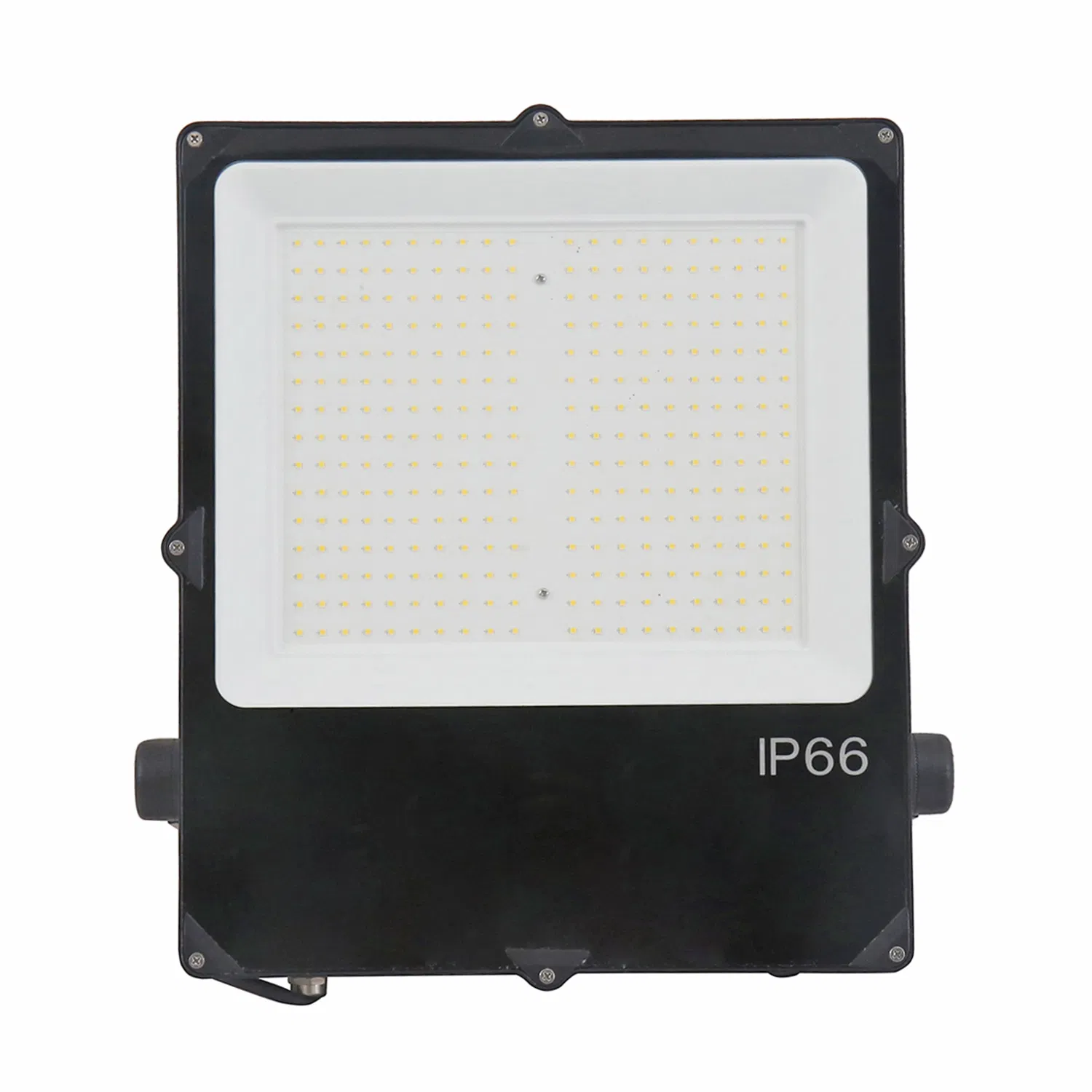

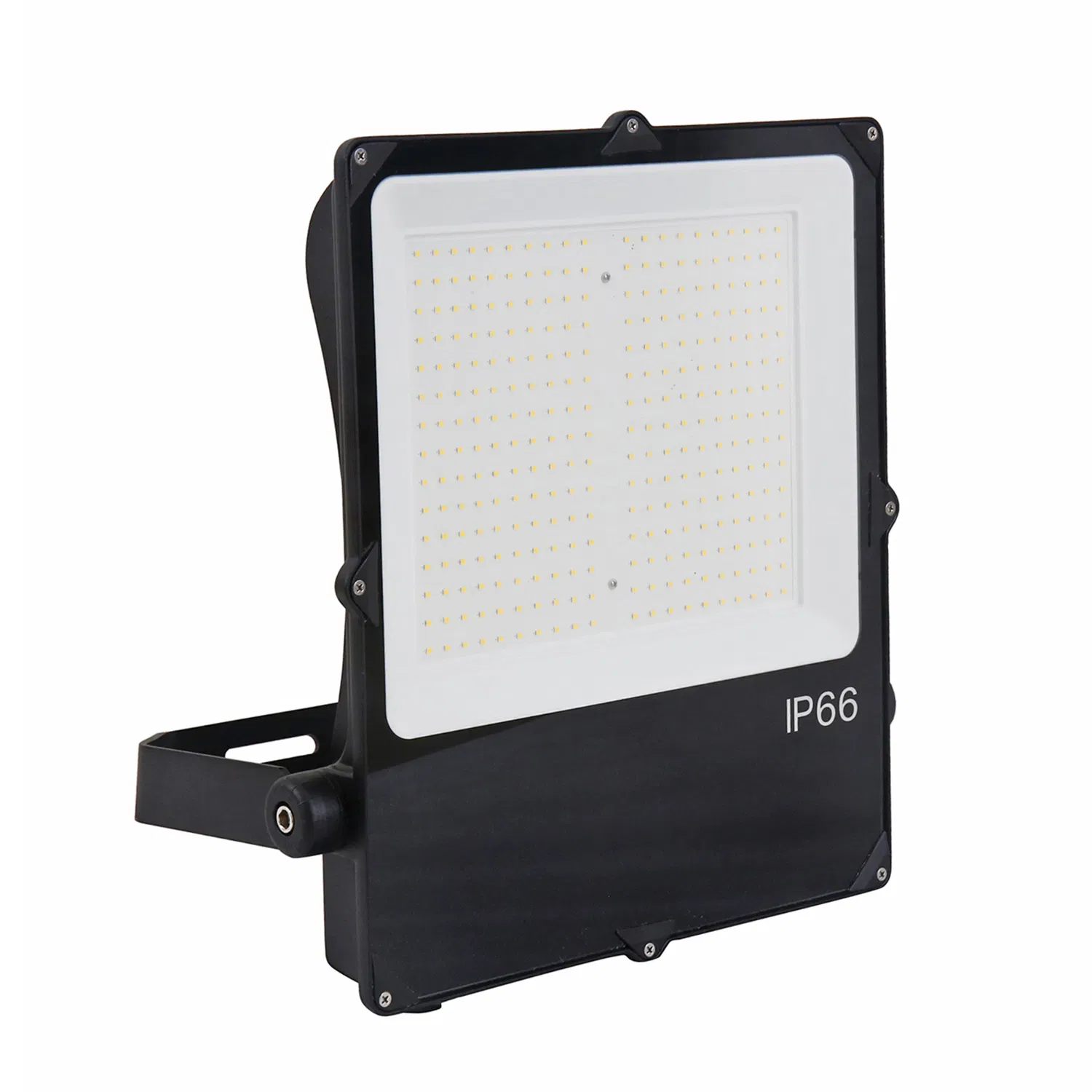

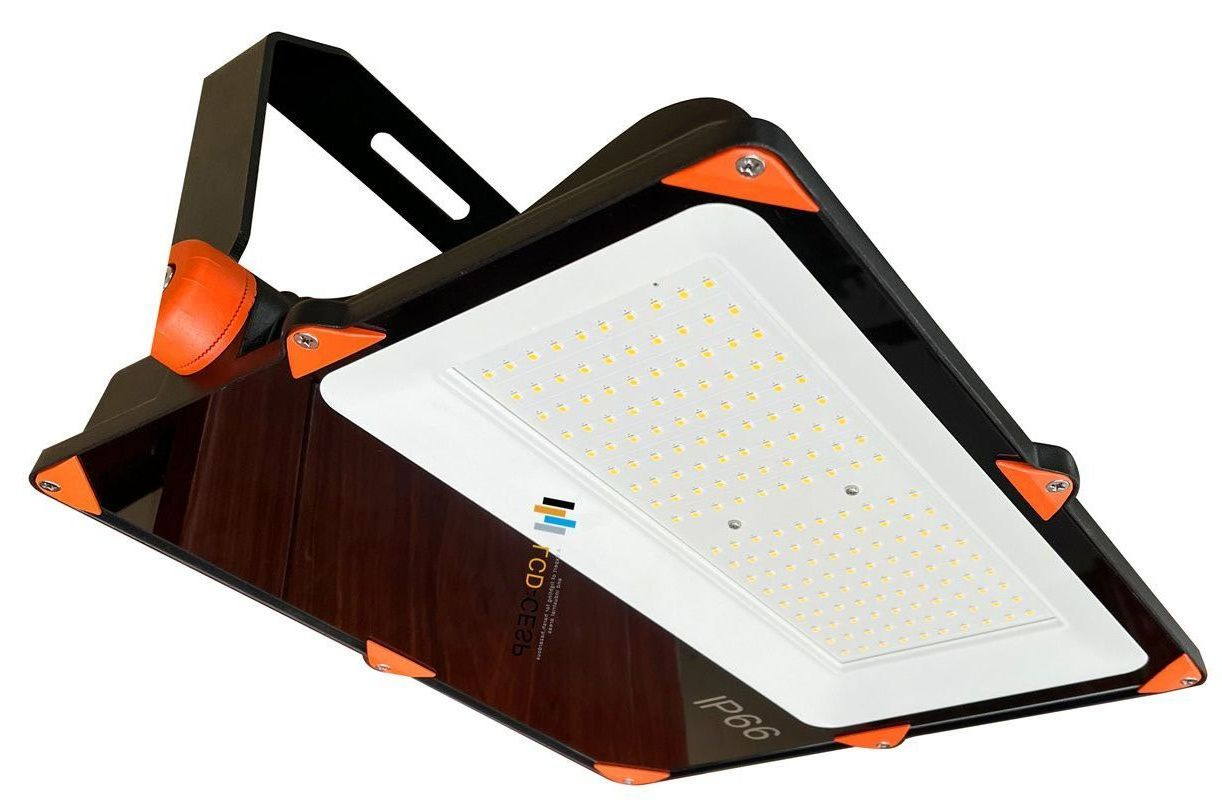

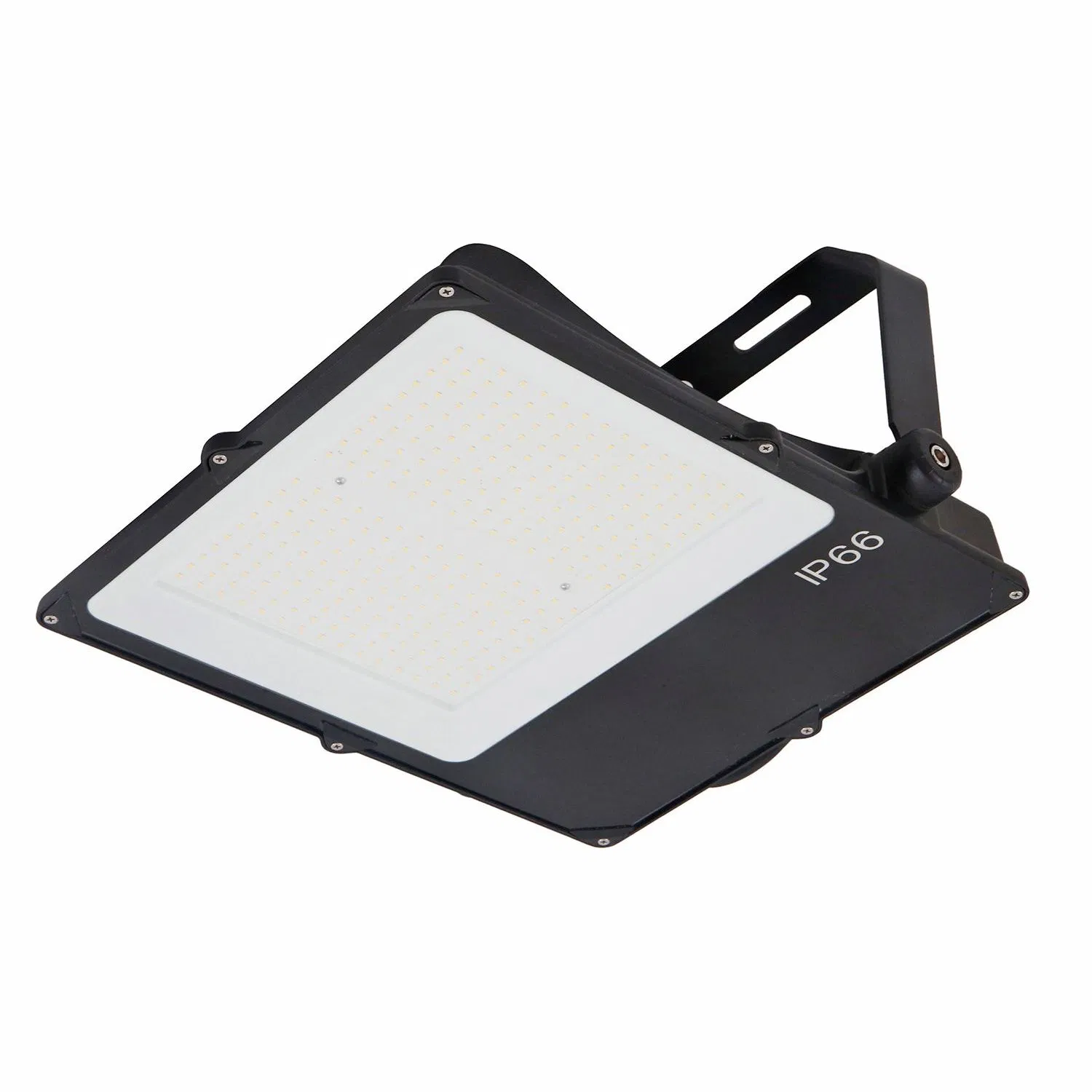

100W 200W LED Floodlight 50000-Hours Lifespan Slashes Replacement Costs and Maintenance Efforts Replace 800W to 1500W Halogen Bulbs Area Flood Lights

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
LCD-LS-SP200-1000-LN20-3K
Pole Height
30-35m
Power
100W-2000W
Projection Distance
80m-1000m
Usage
Depot
IP Rating
IP66
Certification
CE, CQC, EMC, FCC, RoHS, TUV ENEC IEC
Input Voltage
220V
LED Chips Brand
CREE
Ik Rate
Ik08 & Ik10
Beam Angle
30°/60°/90°/120° T2 T3 T4
Lumen Output
120lm/W - 160lm/W
Product Description

200W-500W-2000W Sports Lighting Stadium High Mast LED Flood Lights

High lumen output highmast lighting designed for Arenas, University Tracks, Golf Courses, Industrial Harbours, and various sports fields including football, tennis, and soccer stadiums. This luminaire system features an efficacy up to 140-155LM/W.

Wattage Range: 200W / 400W / 500W / 600W / 800W / 1000W / 1200W / 1500W / 2000W
💡 Lumen Output: 30,000lm to 300,000lm
🎯 Beam Angles: 15° / 30° / 45° / 60°

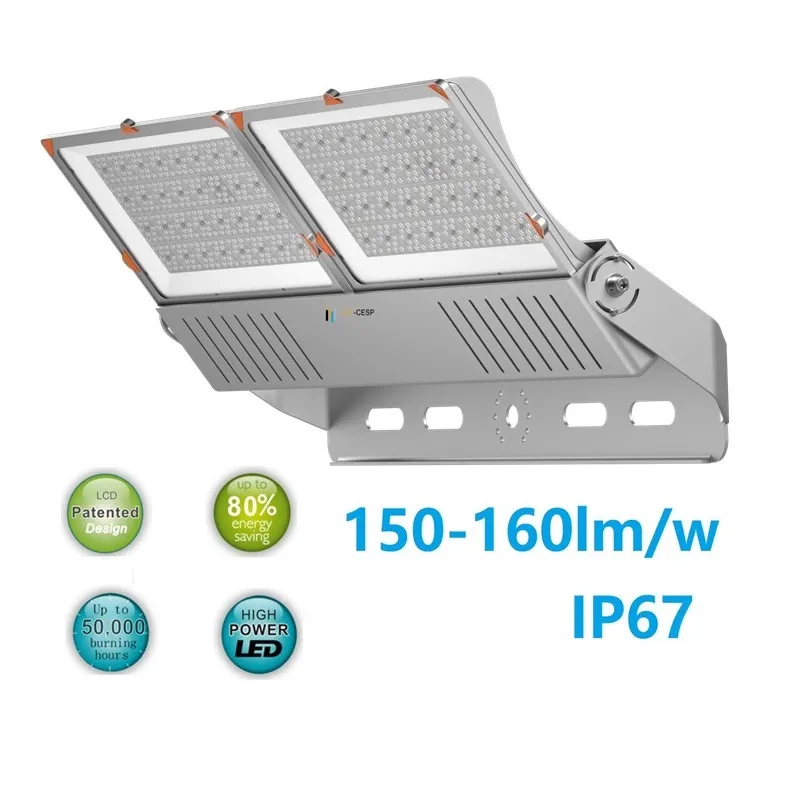

High Mast LED Flood Light
Key Product Features
Efficient replacement for traditional 1000W to 3000W metal halide fixtures.
Utilizes powerful LUMI LEDs (5050 or 3030 series) for superior performance in extreme weather.
Super compact heat sink design with high ventilation to withstand Scale 19 winds.
Equipped with high-quality drivers (Inventronics / Meanwell / Sosen) with 5-7 years warranty.
Intelligent dimming options: 1-10V, DALI, and ZigBee wireless control.
IP66 waterproof rating and IK09 impact protection.
Technical Aspects & Detailed Photos

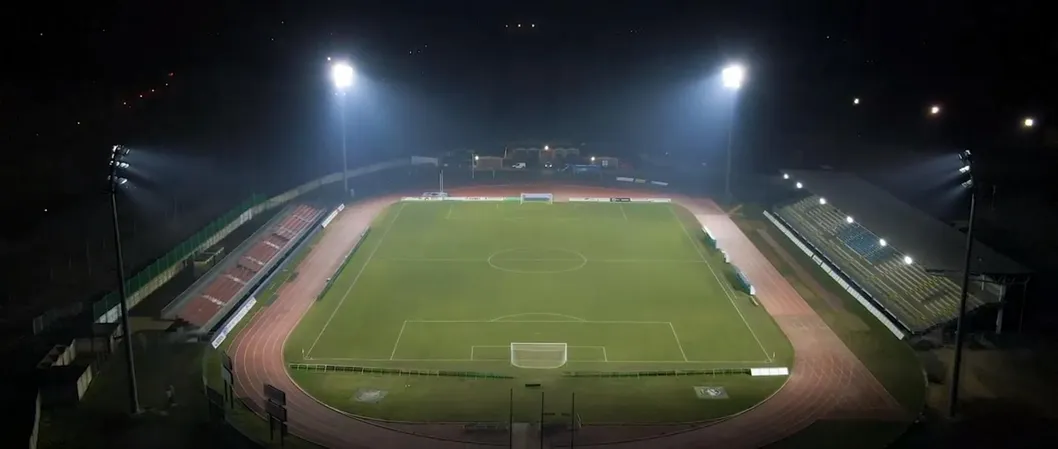

Detailed View 1

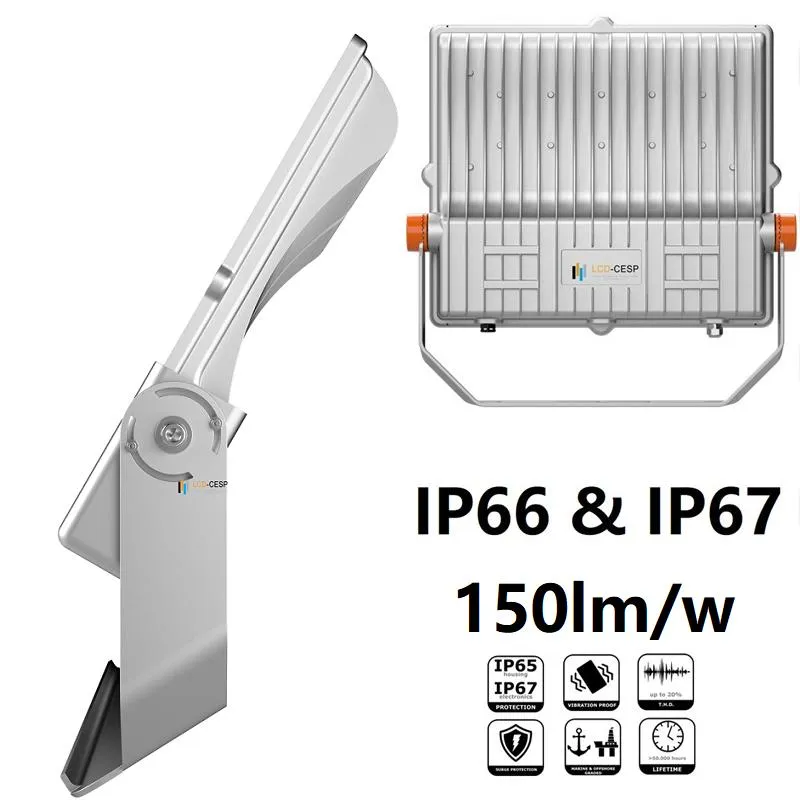

Detailed View 2

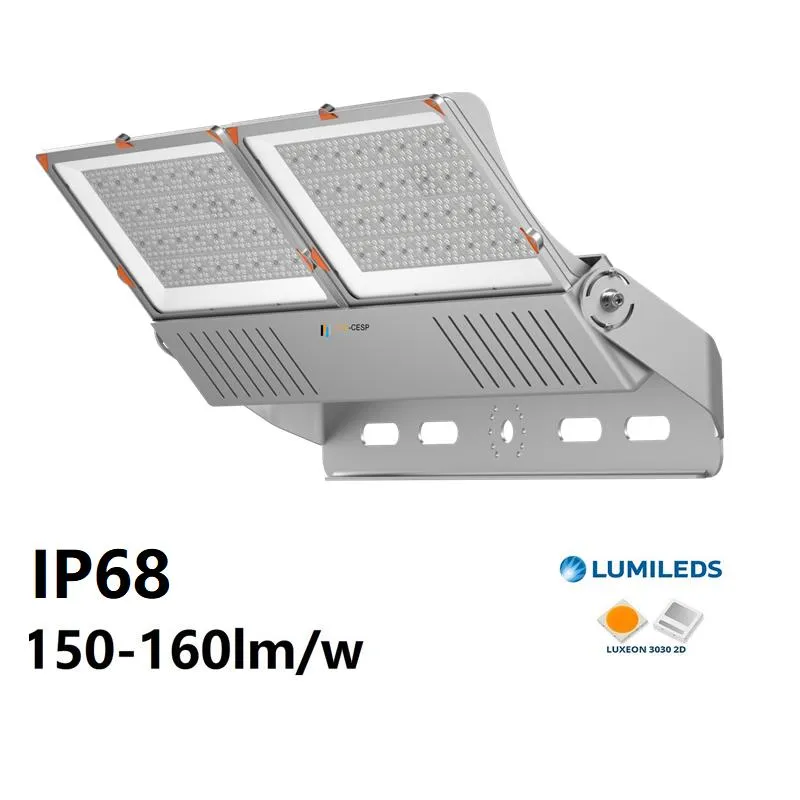

Detailed View 3

Professional Lighting Optical & Thermal Management: The aluminum body is structured with large heat dissipation efficiency, ensuring uniform heat transmission and extending the product life span. High transmittance PC lenses are used to maximize luminous efficacy.

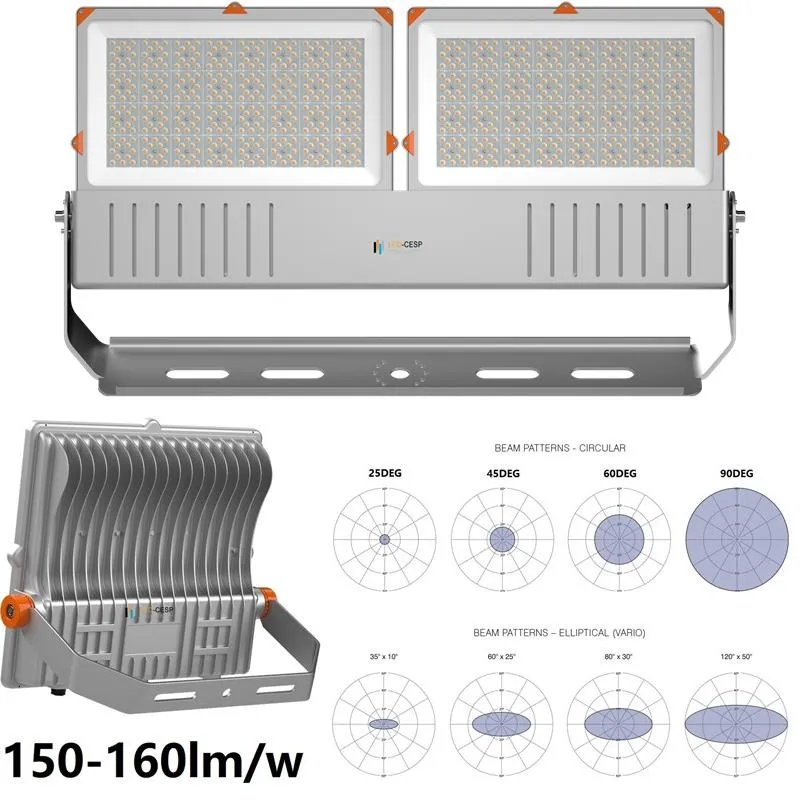

Thermal Management

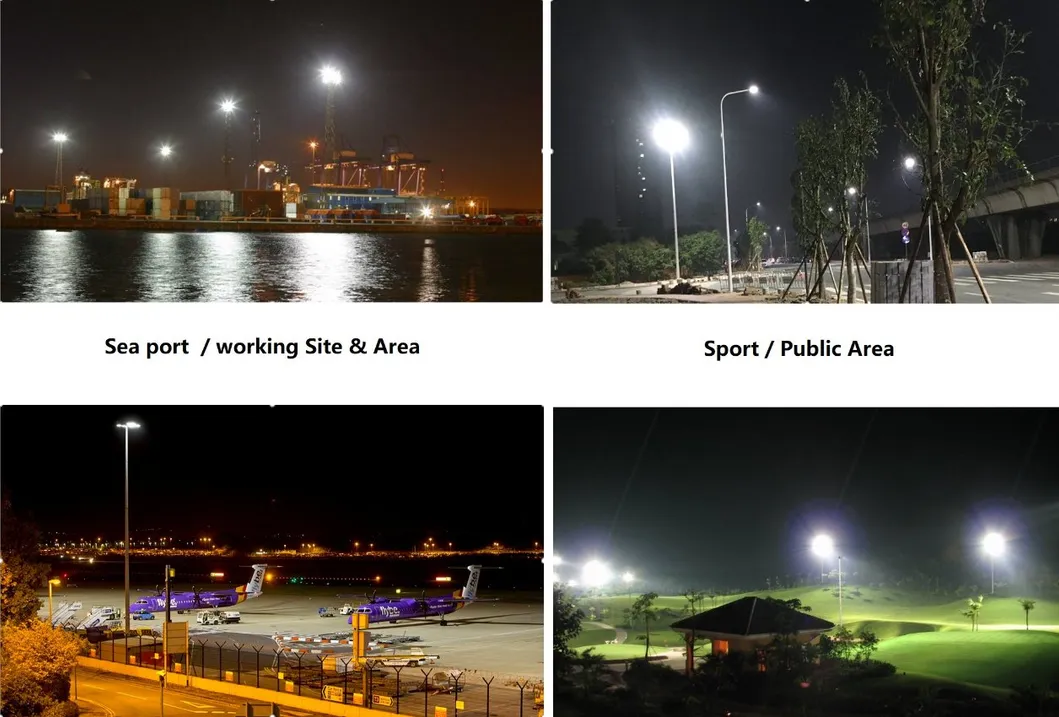

Application Scenario
Technical Specifications
Item Name Data Sheet (500W Example)
Initial Luminous Flux75,500lm +/-10%
Luminaire Efficacy145-155lm/W
CRI≥75
Lumen Maintenance>100,000 hours (L79)
Color Temperature5000K (Other options available)
Input VoltageAC100-277V 50/60Hz
Housing MaterialDie-casted Aluminum Alloy
Operating Temp-40°C to 50°C
Warranty5-6 Years
Dimension 1

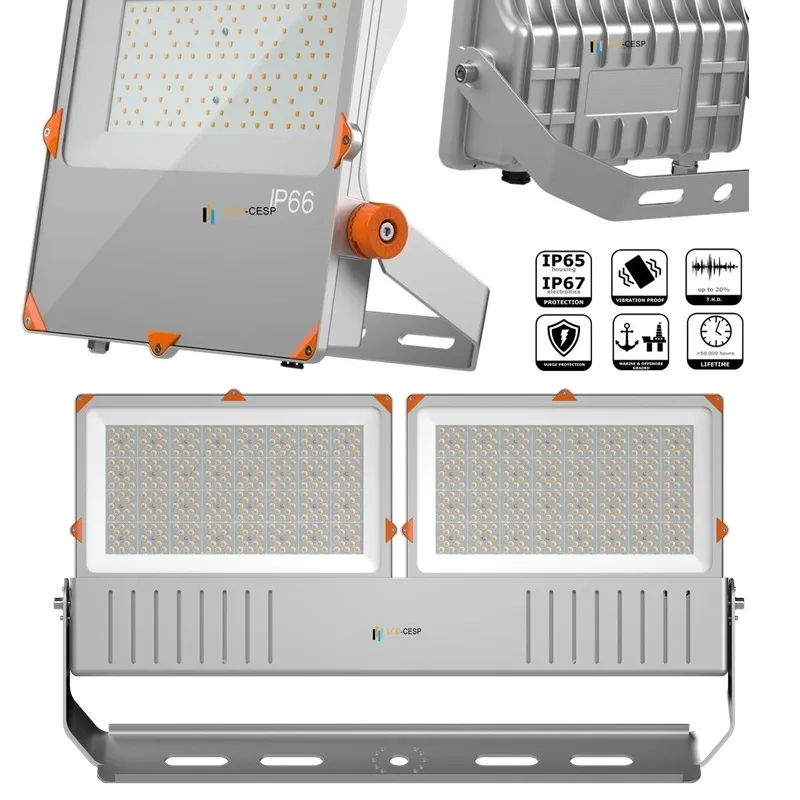

Dimension 2

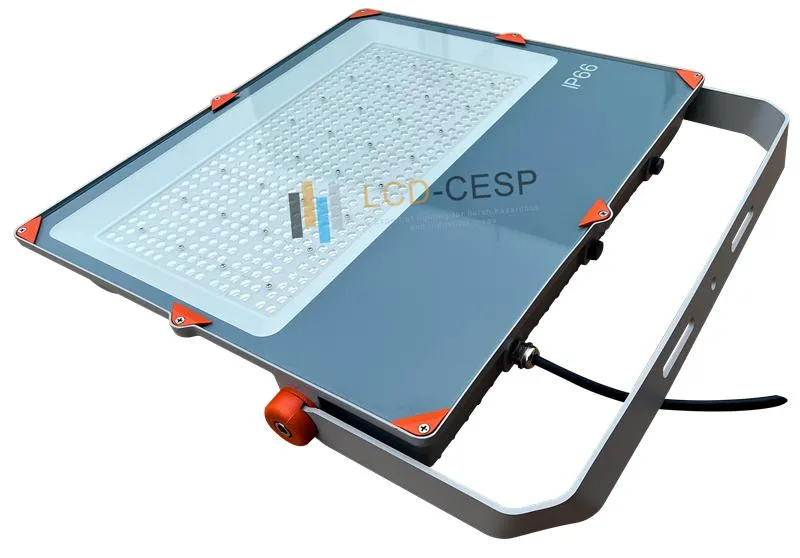

Packing Info
Frequently Asked Questions
What is the maximum power available for these stadium lights?
Our high mast LED flood lights are available in a wide range from 200W up to a maximum of 2000W to suit various large-scale lighting needs.
Can these lights withstand extreme weather conditions?
Yes, they are IP66 waterproof rated and designed with a compact heat sink that minimizes wind resistance, capable of withstanding Scale 19 winds.
What is the lifespan and warranty of the product?
The LEDs are calculated to maintain lumen output for over 100,000 hours. We offer a standard 5 to 6-year warranty depending on the driver configuration.
Are there different beam angle options for specific sports?
Absolutely. We provide multiple beam angles including 15°, 30°, 45°, and 60° to ensure precise lighting control for football, tennis, golf, and other stadium applications.
Do the lights support smart dimming controls?
Yes, our fixtures support 1-10V dimming, DALI 2 dimming, and ZigBee wireless control systems for intelligent energy management.
What certifications do these flood lights hold?
The products are fully certified with CE, RoHS, TUV, SAA, and ETL, meeting international safety and performance standards.
